Notebook Examples

The examples below are implemented as Jupyter notebooks in notebooks/. Each notebook writes visualization files to notebook_outputs/. The images shown here correspond to the VTU files listed with each example.

Triangular Laplace-Beltrami on the sphere

Notebook: notebooks/triangular_laplace_beltrami_sphere.ipynb

Output: tri_laplace_beltrami_sphere_refined_solution.vtu

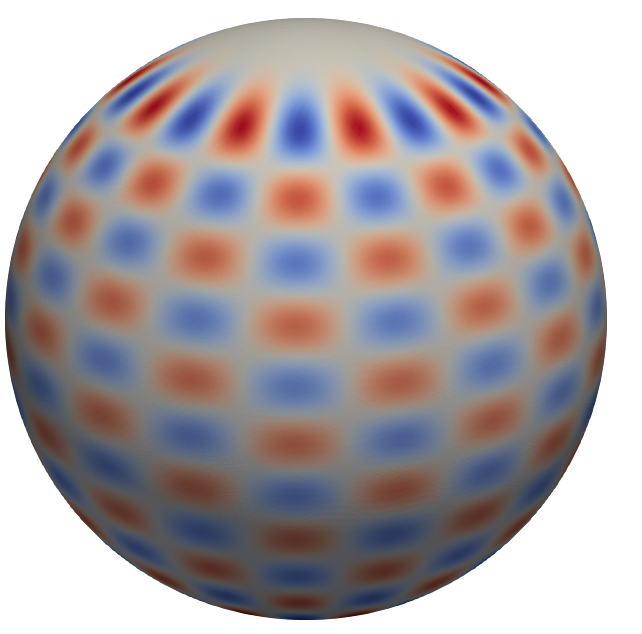

High-order triangular Laplace-Beltrami solution on the sphere.

Surface biharmonic equation

Notebook: notebooks/surface_biharmonic_convergence.ipynb

Output: surface_biharmonic_sphere_solution.vtu

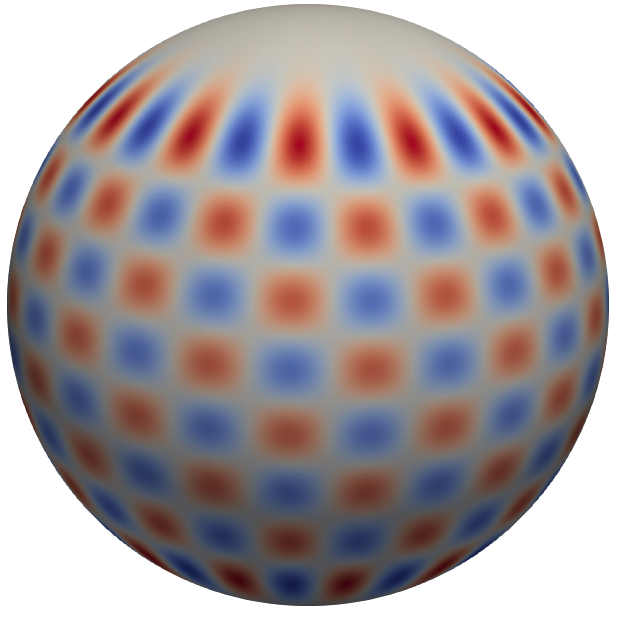

Surface biharmonic solution obtained by applying the second-order solver twice.

Cow surface reaction-diffusion

Notebook: notebooks/cow_reaction_diffusion.ipynb

Output: cow_complex_ginzburg_landau_real_u.vtu

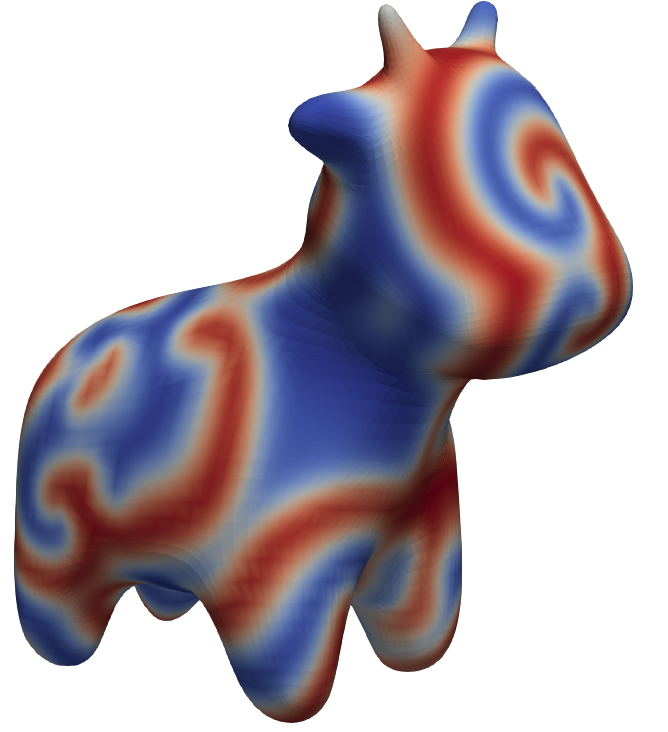

Real part of the complex Ginzburg-Landau field on an imported cow surface.

Swiss-cheese reaction-diffusion

Notebook: notebooks/swiss_cheese_reaction_diffusion.ipynb

Outputs:

• swiss_cheese_reaction_diffusion_u_0000.vtu

• swiss_cheese_reaction_diffusion_u_1000.vtu

• swiss_cheese_reaction_diffusion_u_2000.vtu

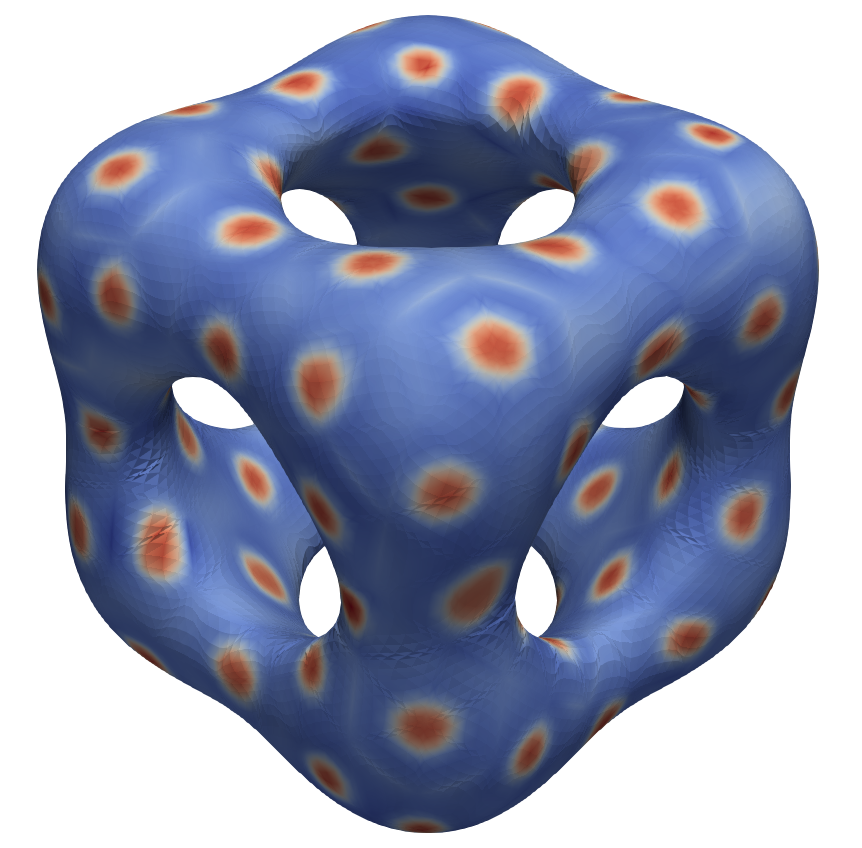

Reaction-diffusion state on the Swiss-cheese level-set surface.

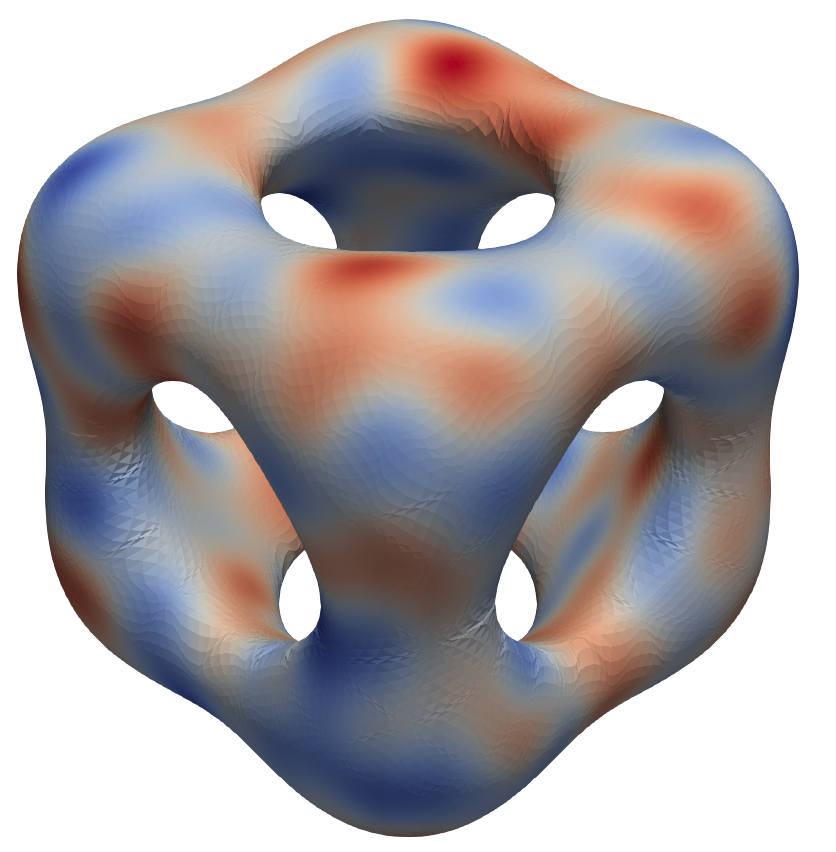

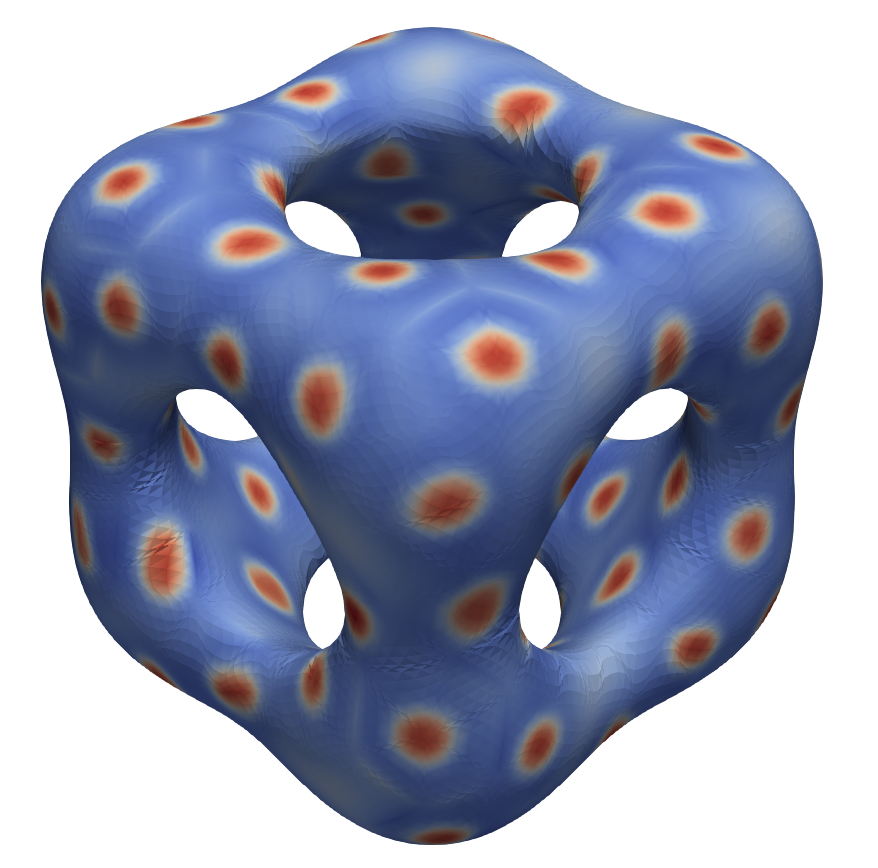

Snapshot images matching the three exported VTU files:

k = 0	k = 1000	k = 2000
